ARIA MK3 MM/MC

The Aria is an “all analogue amplifier” with no digital control circuitry. The fully aluminium case screens the internal circuit from any stray RFI signals. Our designers have avoided including any superfluous gadgets as they obstruct the signal path and degrade the sound quality. The Aria incorporates many innovative design ideas including a self-adjusting servo control to keep the MC input circuit at its optimum, compensating for any variations in ambient or operating temperature.
Both stages have their own separate input sockets and input pre-amplifier circuitry. This enabled us to design bespoke input circuitry for each cartridge type without compromise. Signal switching is performed at high level and low impedance (via relays) ensuring there is no degradation of the signal. KEY FEATURES

• High performance switchable MC MM stage
• Fully adjustable MC stage
• MC input uses parallel connected low noise FET's
• MM input uses low noise bipolar transistors
• Custom designed case
• All analogue amplifier
• Bespoke input circuitry for MM MC
• Lifetime warranty against manufacture defects

TECHNICAL SPECIFICATIONS

• Maximum Output Level: 11 V RMS
• Rated Output Level: 200 mV
• Output Resistance: 100 Ω
• Minimum Output Resistance for a -3 dB @ 15Hz 1 kΩ
• Power Consumption 10 W
• Ambient Operating Temperature: 5 a 35 °C
• Dimensions (W × H × D): 218 x 78 x 315 mm
• Weight: 3.1 kg

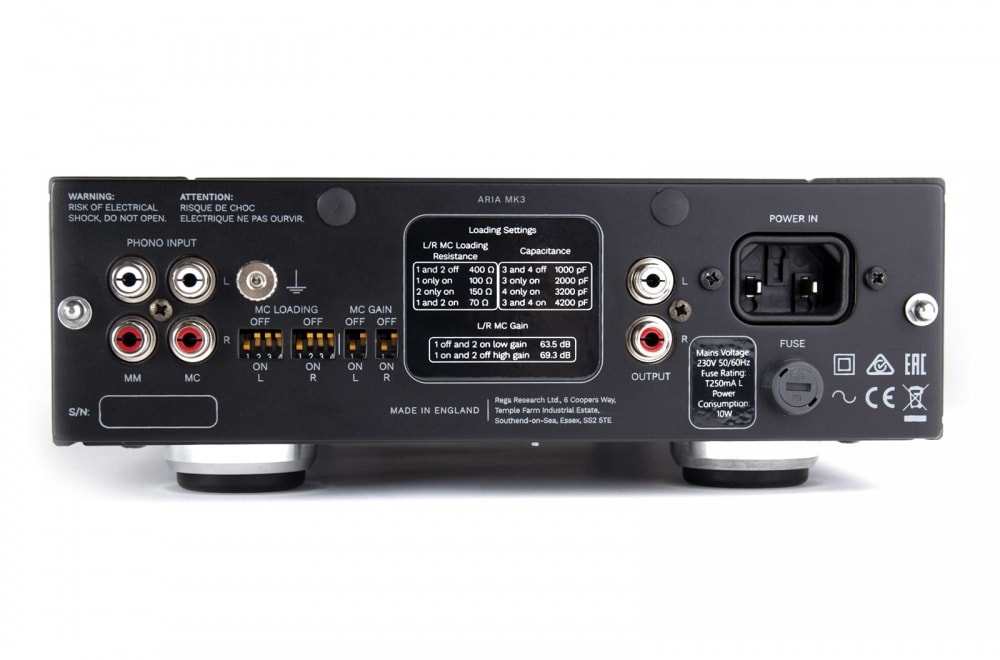

LOAD SETTINGS FOR ADJUSTABLE MC STAGES

• Rega MC Load Resistance L R: 100 Ω
• Rega MC Loading Capacitance L R: 1000 pF
• Rega MC Gain L R 69.3 dB 9 (High setting for Rega MC models)
